SE-400

Warning: Undefined variable $thepost in /home/thermotr2n3/public_html/staging/wp-content/themes/thermotron/single-equipment.php on line 150

Warning: Attempt to read property "ID" on null in /home/thermotr2n3/public_html/staging/wp-content/themes/thermotron/single-equipment.php on line 150

Warning: Undefined variable $thepost in /home/thermotr2n3/public_html/staging/wp-content/themes/thermotron/single-equipment.php on line 151

Warning: Attempt to read property "ID" on null in /home/thermotr2n3/public_html/staging/wp-content/themes/thermotron/single-equipment.php on line 151

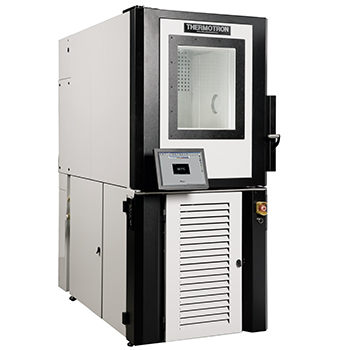

Thermotron’s SE-400s are high performance environmental chambers with 385 Liters of workspace. These climate chambers match compressor sizes to your enhanced performance needs.

A Thermotron SE-400 environmental chamber may also be equipped with Thermotron’s patented modular humidity system. This system may be added at the time of purchase or easily added at your facility as a field retrofit.

Specifications
Features & Options
Request Information

Model Number	Workspace Volume	Cooling Performance
SE-400-6-6 Environmental Chamber	13.6 ft³ 385 L	8.3ºC/minute 85ºC to -40ºC
SE-400-10-10 Environmental Chamber	13.6 ft³ 385 L	13.8ºC/minute 85ºC to -40ºC
SE-400-15-15 Environmental Chamber	13.6 ft³ 385 L	13.8ºC/minute 85ºC to -40ºC

Standard

ThermoTrak II

Thermotron's ThermoTrak II^™ software has innovative capabilities to make test chamber control more efficient than ever before. Designed with input from engineers worldwide, ThermoTrak II^™ has been designed to simplify lab management and improve performance by saving time, increasing productivity and cutting costs. ThermoTrak II^™ is a networking system that provides access to chamber programming, operating, data acquisition and display functions from a single PC. It allows for multiple Thermotron chamber controllers to be linked and automates and simplifies your testing process. It also allows you to run several test profiles simultaneously. The exclusive instrumentation, operating speed and equipment compatibility elevates productivity and its tracking and recording features make data collection more accurate and efficient. While the Microsoft Windows^® based environment makes setting up and using the ThermoTrak II^™ software easy. Request Download

ThermoTrak II Software Specifications
Thermotron Controllers Supported	2800, 3200, 3800, 4800, 6850, 7800, 7825, 8200, 8800, 8825, Oven
Interface Capabilities	RS232, RS485, GPIB (IEEE-488), Ethernet (TCP/IP)
Maximum Number of Controllers	Up to 32
Maximum Control Channels	4 (controller dependent)
Data Log/Graph Resolutions	Adjustable per controller; 2-3,600 second increments
Maximum Graph/Data Log Display Readings	32,000 per logged item
Maximum Data Log File	Limited only by hard drive space
Operating System Required	Microsoft Windows® 95, 98, 2000, NT, XP, Vista, 7, or 10

Optional

8800 Chamber Data Acquisition (DAQ)

Thermotron’s streamlined data acquisition system (DAQ) provides users with more usable data than ever before. Enhance the graphing capabilities of the Windows®-based 8800 Controller by overlaying your product’s input, output, and temperature data on a single screen. The same data can be exported to various Microsoft® applications. Available on most chambers, the DAQ features pluggable screw terminal connections, standard jacks, thermocouples, and more. The DAQ panel is easy to set up with the 8800 Controller to begin testing your product.
Boost Cooling and Heating

Boost cooling and heating options enhance performance on select environmental test equipment. Liquid nitrogen Boost and Carbon Dioxide Boost are cooling injection systems that enable faster pull-downs and product temperature change rates in an environmental chamber. Adding the extra heat feature to your environmental chamber accelerates the test chamber's heating capabilities to improve air and product temperature change rates.
CSA or CE Electrical Codes

For equipment going to Canada or the European Union, Thermotron can build the equipment to CSA or CE electrical codes to ensure the safety of equipment users and the facility.
Door Interlocks

As an optional safety feature the door interlocks prevent the chamber door from opening during a test.
Electronic Humidity Sensor

The Electronic Humidity Sensor is located in the chamber workspace to monitor the humidity levels the product is experiencing. This sensor eliminates the need for maintenance-intensive thermocouple wicks and float tanks.
Humidity

Many Thermotron environmental chambers have the optional feature of humidity to diversify the utility of the climatic chamber. Precise uniformity and tight control characterize the high-performance specifications of the humidity system. Thermotron humidity systems can be configured for a direct-feed facility hook-up or using a water reservoir. The system’s steam generator achieves high volumes of moisture with consistent water vapor levels and more repeatable test result. The SE-Series Temperature Humidity Chambers have a patented, modular, full-range humidity system. This allows a temperature chamber to be retrofitted and upgraded to a temperature humidity chamber. Humidity tests can be monitored through the environmental chambers’ controllers.
Product Dewpoint Control
The Product Dewpoint Control (PDC) feature uses algorithms programmed into the 8800 programmer controller to automatically maintain the product to be warmer than the surrounding air. This allows the 8800 to implement the best possible ramp rate to the desired temperature/relative humidity conditions while preventing condensation on the products under test. In the simplest configuration, the product temperature control sensor becomes the PDC sensor when in dewpoint mode. In these chambers, a second control module was added so that 7 additional thermocouples could be distributed inside the chamber. The 8800 algorithm then uses a minimum of eight thermocouple readings (PDC thermocouple + 7 extras) to maintain the correct offset between product temperature and chamber air temperature. The PDC option will be available to customers like other options we provide such as humidity, low humidity, purge, etc. PDC can be retrofitted to existing chambers if the software is updated.

8800 controller algorithms operate the chambers heat and humidity systems in such a way that the chamber air dewpoint remains at a temperature that is lower than the products temperature. Thus, prevents condensation from forming.

8800 controller only

Selectable feature in Manual Mode or Program Mode

Retrofitable – Upgrade software

Does not require a hardware or refrigeration upgrade
Reinforced Floors

Reinforced floors are used in multiple Thermotron chambers. Their purpose is to increase weight handling as well as assist in distributing product load weight.
Transition Cooling

This innovative feature boosts performance and reduces chamber energy consumption. Single-stage refrigeration systems perform best in higher temperature ranges, while cascade refrigeration systems perform best in lower temperature ranges. Transition Cooling combines the benefits of both systems. With a sophisticated control logic that enables the refrigeration system to switch from single-stage at high temperature to cascade operation at low temperature, the Transition Cooling feature speeds ramp times up to 30% while reducing power consumption.
Water Purification and Recirculation System

The Water Purification and Recirculation System is an optional feature on humidity systems for Thermotron equipment. This system purifies water to be within the recommended working limits of the chamber and the recirculation aspect takes water that has already be used in the humidity system and reuses it after it has been purified.
Access Port
Access ports are available to easily reach into the environmental chamber to adjust the product under test. Most climate chambers come with one standard port. Additional ports can be added to the environmental chamber. Access Ports are constructed of stainless steel, heliarc welded to the interior liner. Environmental chamber users select the access port size and location at no additional charge. Port availability may vary depending on environmental chamber model. Custom options are available.
The following are the most standard sizes:

3" (7.5 cm)

4" (10 cm)

5" (12.5 cm)

6" (15 cm)

8" (20 cm)- HALT Chamber Only
Air Cooled Condenser

Air Cooled Condensers for environmental chambers take the heat of out the equipment's refrigeration system. On smaller and standard Thermotron environmental equipment, the air-cooled condenser is located inside the environmental chamber. A remote air-cooled condenser is available for equipment with higher performance requirements or larger compressors. Water-cooled condensers may also be available, depending on environmental chamber model. Contact your local sales representative for more information.
Cable Notch

The cable notch is an optional feature located on the latch side of the environmental chamber in the door frame. The notch provides easy removal of cabling to the exterior of the environmental chamber. A plug is included to cover the open section and preserve the environment inside the test chamber.
Custom Colors
You are probably used to only seeing a Thermotron environmental chamber or electrodynamic shaker in just one of two colors – blue and gray. But we can in fact paint your piece of test equipment any color you like, provided you let us know which one.

Custom paint color is an available optional feature for equipment purchased from Thermotron, and the process is quite simple. During the quote process, you work with our Sales and Application Engineers and simply notify them what color you want your test equipment to be painted. We primarily work with RAL and FED-STD-595C – Color Standards, but if you provide us with a color and the standard it comes from we will work with our paint supplier to ensure that your environmental chamber or electrodynamic shaker is painted your specified color.

So, why would you want to have your climate chamber painted a different color? There are many reasons here are a few of the most common:

Branding – customers want to have their equipment painted to promote their brand, and incorporate their branding colors into items their staff and customers see every day.

Grouping – Some customers with many Thermotron chambers in their lab need them to be color coordinated by function, ability, or size.

Safety – We have also had customers request that only certain parts of the environmental chamber or electrodynamic shaker are painted. For example we had a customer paint all electrical panels bright orange to highlight potential safety hazards.

There are many unique reasons to specify a paint color on your environmental chamber or electrodynamic shaker, almost as many as there are colors. What color would you put on your test equipment?
Dry Air Purge

This option enables reduced moisture operation at low temperatures, dewpoints at -40°C. The system consists of a flow meter, regulator and control solenoid for program operation. It utilizes compressed air as the supply source and is very helpful in minimizing moisture in the chamber. This feature is built within the chamber, so no additional floor space is needed.
Glove Ports

Glove ports are ports located on the front or sides of the chamber that allow users to place their hands inside the chamber and adjust the product under test without interrupting the workspace condition. Arm ports can also be placed on Thermotron’s patented Universal Port option (SE-Series only) for occasional use.
Low Humidity

A standard humidity system is designed to enable temporary operation down to -10°C dewpoint in a humidity chamber. A low humidity option will enable extended operation down to 5 grains of moisture per pound of dry air minimum limitation and humidity range from 5% RH to 98% RH. The low humidity option on a humidity chamber incorporates a dry air purge for ultra low dewpoints. It also adds a bubbler humidity system which allows small amounts of moisture to be added to the air in the humidity chamber for low humidity control. This eliminates problems associated with adding hot steam to a cold environment which creates two problems: heat that needs to be taken out of the system and steam generator oscillation.
Oxygen Monitor

The Oxygen Monitor is mounted on the outside of the chamber when using LN₂or CO₂ Boost to ensure that the level of oxygen in the room is at a safe level or chamber users. It is a standard safety feature.
Quiet Package

A quiet package is an optional feature that minimizes the noise levels coming from environmental test equipment. Depending on the equipment (electrodynamic shaker or climate chamber) and the size of the environmental test equipment, the quiet package will look and vary in functionality. For more information contact your local sales representative.
